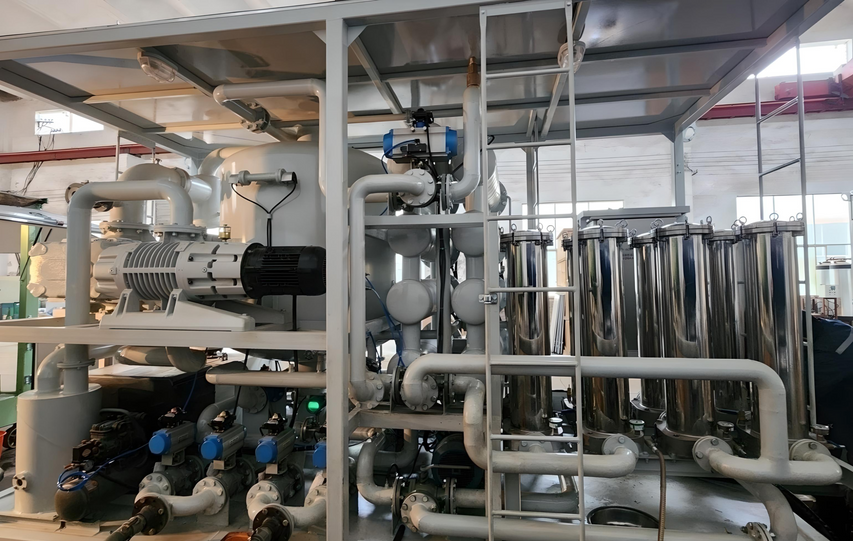

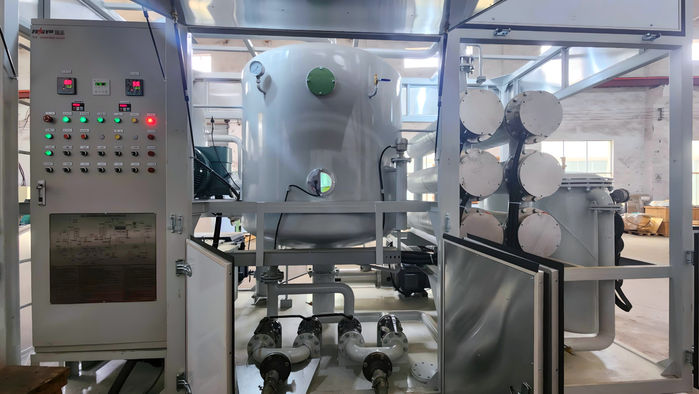

Product Gallery & On-site Operation

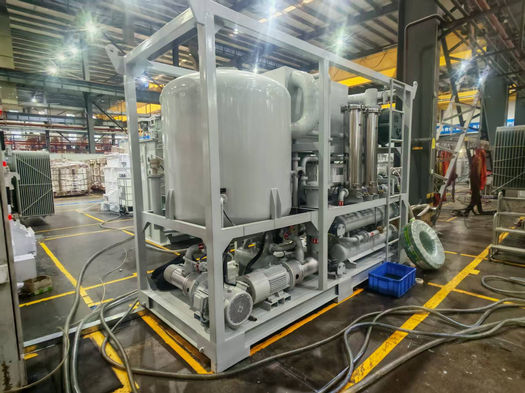

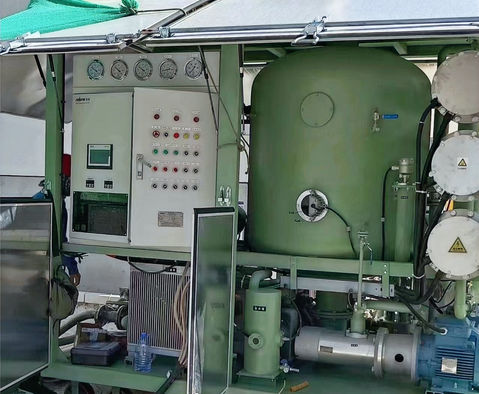

DZL-100A On-site Operation
FUNCTION
The DZL Series of signal and double-stage high-efficient vacuum oil purifier is engineered with a primary goal — to maintain the utmost purity and enhance the insulation properties of insulating oils. Its core function involves the removal of free and dissolved water, gases, and mechanical impurities. This makes it an ideal choice for oil treatment in applications like 500KV super-voltage transforming equipment and 220KV transformers. Moreover, the DZL Series excels in the purification of capacitor oil, transformer oil, and freezer oil.
TECHNICAL FEATURES
-
Efficient Vacuum Separation: This series incorporates Fengyu's horizontal double vacuum separation technology, doubling the evaporation area. This innovation ensures the reliable removal of gases from the oil, achieved through the coalescing oil spray separator.
-
High-Quality Filtration: It adopts American fine filter elements with an impressive fineness of 5μm and a ß value exceeding 1000.
-
Low Noise and Durability: The oil transport system is designed for low noise and extended service life, contributing to efficient and noiseless operation.
-
Precise Temperature Control: Utilizing American heating techniques with thermal radiation, the system offers constant temperature control, ensuring consistent and reliable performance.
-
Automated Control: The DZL Series features a float valve and photoelectric oil level control, eliminating the need for constant supervision. It's also digitally and automatically controlled by a PLC (Programmable Logic Controller).
-
Advanced De-Foaming: French de-foaming techniques are incorporated to prevent oil leakage and maintain system integrity.
-
Safe and Reliable: Major electrical components are imported from the United States, ensuring a safe and reliable controlling system.
DZL Series
Product Parameters
Application Scope
-
Insulating Oil: Ideal for degasification, dehydration, and filtration of insulating oil.
-
Refrigeration Oil: Efficiently treats and improves the quality of refrigeration oil.
Key Functions
-
Degasification and Dehydration: Expertly removes gases and moisture from insulating oil, enhancing its performance and longevity.
-
On-Site Oil Treatment: Enables on-site oil treatment and drying for electrical equipment, ensuring operational efficiency.
-
Injection Under Vacuum: Facilitates the vacuum-conditioned injection of oil into electrical equipment, maintaining the highest standards of purity.
-
Transformer Vacuum Evacuation: Capable of performing vacuum evacuations for transformers, maintaining optimal conditions for their operation.
(Click the title above to download if having issues accessing to the specification)
_page-0001%20(1)_edited_jp.jpg)
General Index
_page-0001_edited.jpg)
Note: Index values and specifications may be subject to changes or customization based on specific project requirements and individual customer needs. Please contact our support team for the most accurate and up-to-date information tailored to your specific application.
